Assembly tables are versatile, perfect for grouping components and equipment in one place. With swivel arms, containers, shelves, and tool panels, they're ideal for picking, kanban, or lean production. Configurable for effective organization, enhancing ergonomics and safety. Streamlining workflows optimizes processes, boosting efficiency and productivity across job orders.

Features

  • Light weight and modular design in knockdown condition provides flexibility in relocation with ease.
  • Ergonomically design.
  • Wide range of accessories to suit your requirement.
  • Maintenance free.
  • Easy to assemble.
  • Glossy finish with scratch and impact-resistant powder coating.
  • Levelers of height adjustment.

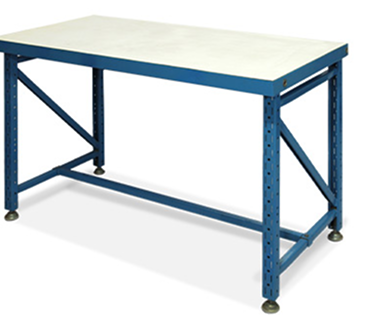

Basic

  • Features: Modular structure and easy for assemble MS Top with 1.5 mm thick White Lilly Carpet Working height 850 mm Adjustable + 50 with Leveller
  • Load Capacity: Max. 250 KG UDL on Top Surface
  • Powder Coating: RAL 5015
PART CODE DIMENSIONS (L X D) MM
M08 MT02 01 700 x 700
M08 MT02 02 1000 x 700
M08 MT02 03 1200 x 700
M08 MT02 04 1400 x 700
M08 MT02 05 1800 x 700

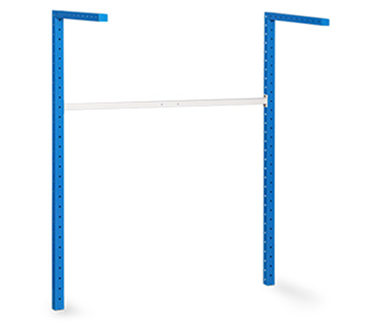

Upper Frame (l -Type)

  • Features: Upper Frame assembly has attached to the Basic Table Upper Frame height is 1300 mm from Top Surface
  • Powder Coating:  RAL 5015
PART CODE LENGTH (MM)
M08 MT02 01 700
M08 MT02 02 1000
M08 MT02 03 1200
M08 MT02 04 1400
M08 MT02 05 1800

Upper Frame-Straight Type

  • Features: Upper Frame assembly has attached to the Basic Table Upper Frame height is 750 MM from top Surface
  • Powder Coating:  RAL 5015
PART CODE LENGTH (MM)
M08 MT02 01 700
M08 MT02 02 1000
M08 MT02 03 1200
M08 MT02 04 1400
M08 MT02 05 1800

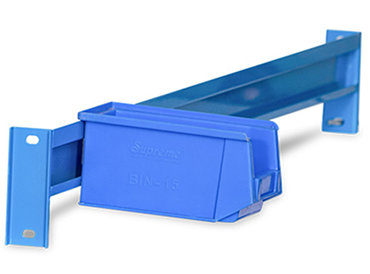

Fpo Bin Stand

  • Features: To keep FPO Bin only at Front Side (FPO 5, 10, 15 and 25)
  • Load Capacity: Max. 25 kg UDL
  • Powder Coating: RAL 5015
PART CODE LENGTH (MM)
M08 AC01 01 700
M08 AC01 02 1000
M08 AC01 03 1200
M08 AC01 04 1400
M08 AC01 05 1800

Electrical Box Unit

  • Features: In one standard Switch Box Plate consists of For Switch and Socket - 5A, 15A (01 No each) For Tube Light-5A Switch (01 No) For Dummy Location - End Cap (01 No)
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM) SWITCH BOX
M08 AC03 01 700 Single Side
M08 AC03 02 1000 Single Side
M08 AC03 06 1200 Both Side
M08 AC03 07 1400 Both Side
M08 AC03 08 1800 Both Side

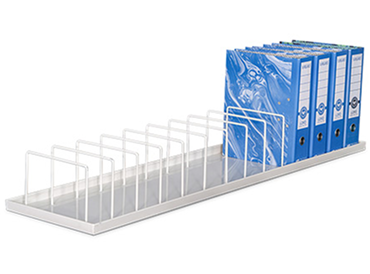

Box File Shelf

  • Features: To keep the Box File and the Depth is 310 mm
  • Load Capacity: Max. 100 kg UDL
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM) NO. OF BOX FILE
M08 AC02 01 700 6
M08 AC02 02 1000 9
M08 AC02 03 1200 10
M08 AC02 04 1400 12
M08 AC02 05 1800 16

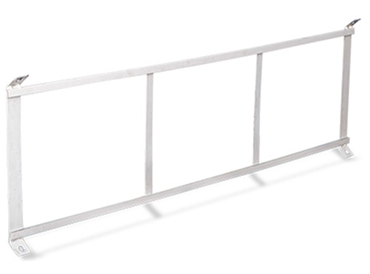

Display Unit

  • Features: To display the drawings and assembly instruction
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM)
M08 AC01 01 700
M08 AC01 02 1000
M08 AC01 03 1200
M08 AC01 04 1400
M08 AC01 05 1800

Perfo Panel Full Length

  • Features: To keep tools and height is 610 MM
  • Load Capacity: Max 25 KG UDL
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM)
M08 AC05 01 700
M08 AC05 02 1000
M08 AC05 03 1200
M08 AC05 04 1400
M08 AC05 05 1800

Perfo Accessories Sets of 36 Pieces

  • Features: To keep tools and height is 610 MM
  • Load Capacity: Max 25 KG UDL
  • Powder Coating: RAL 9001
PRODUCT CODE: MEPL M05 PP03 08
Single Hook L 20 MM 05 Nos Spanner Holder 1 Nos
Single Hook L 40 MM 10 Nos Screw Driver Holder 1 Nos
Single Hook L 85 MM 10 Nos Allen Key Holder 1 Nos
Single Hook L 40 MM 05 Nos Saw Holder 1 Nos
Drill Bit Holder 2 Nos

Soft Board Full Length

  • Features: To pin instructions, reports and height is 610 mm
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM)
M08 AC07 01 700
M08 AC07 02 1000
M08 AC07 03 1200
M08 AC07 04 1400
M08 AC07 05 1800

White Board Full lLength

  • Features: To write the instructions and height is 610 MM
  • Board Type: Non - Magnetic
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM)
M08 AC09 03 700
M08 AC09 06 1000
M08 AC09 07 1200
M08 AC09 08 1400
M08 AC09 10 1800

Tilting Shelf

  • Features: To keep the FPO Bin, Boxes and Depth is 325 MM
  • Board Type: Max 100 KG UDL
  • Powder Coating: AL 9001
PART CODE LENGTH (MM)
M08 AC12 01 700
M08 AC12 02 1000
M08 AC12 03 1200
M08 AC12 04 1400
M08 AC12 05 1800

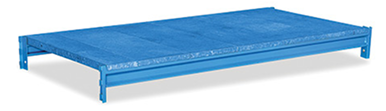

Bottom Shelf Panel Type

  • Features:To keep Boxes and Bins with max. capacity 100 KG
  • Powder Coating: AL 9001
PART CODE LENGTH (MM)
M08 AC16 01 700
M08 AC16 02 1000
M08 AC16 03 1200
M08 AC16 04 1400
M08 AC16 05 1800

Trolley with Rail

  • Features:For Hanging Air Gun, Soldering m/c with max. capacity 5 KG
  • Powder Coating: AL 9001
PART CODE LENGTH (MM)
M08 AC17 01 700
M08 AC17 02 1000
M08 AC17 03 1200
M08 AC17 04 1400
M08 AC17 05 1800

Spring Balancer

  • Features:Used for Hanging Tools
PART CODE LENGTH (MM)
M08 AC20 07 3
M08 AC20 08 5

Document Folder

  • Features: To display the drawings and assembly instruction
PRODUCT CODE SET OF PAGES FOLDER TYPE
M08 AC20 01 05 A4
M08 AC20 02 10 10
M08 AC20 03 05 A3
M08 AC20 04 10 10

Tubelight with Cover (LED)

  • Features: Provides an optimal lighting level of 300 lux on the top surface
PART CODE LENGTH (MM)
M08 AC25 11 (600 mm) 2 FT
M08 AC25 15 (1200 mm) 4 FT

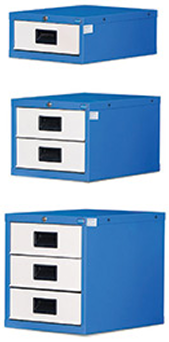

Drawer Unit

  • Features: Drawers have Full Pull Out (100% Open)
  • Powder Coating: RAL 9001
PRODUCT CODE PRODUCT DESCRIPTION DRAWER CAPACITY (KG) OVERALL SIZE (L X D X H) MM USABLE SIZE (L X D X H) MM
M08 AC11 01 1 Drawer unit 20 385 x 510 x 185 315 x 460 x 85
M08 AC11 02 1 Drawer unit 20 385 x 510 x 308 315 x 460 x 85
M08 AC11 03 1 Drawer unit 20 385 x 510 x 431 315 x 460 x 85
