CNC Tool Storage is a safe, organized and efficient solution to store the varied sized of precision tools used in CNC Machines. The design of the tool holders provides a secured movement of tools on the Shop Floor. The usage of these trollies makes the work flow quicker by eliminating the ideal time and a fast accessibility to the tools during the changeovers.

Features

  • Ergonomic and modular design.
  • Durable and rugged performance.
  • Optimum traction and manoeuvrability.
  • Safe and secure grip of the tools.
  • Glossy finish with scratch and
    impact-resistant powder coating.

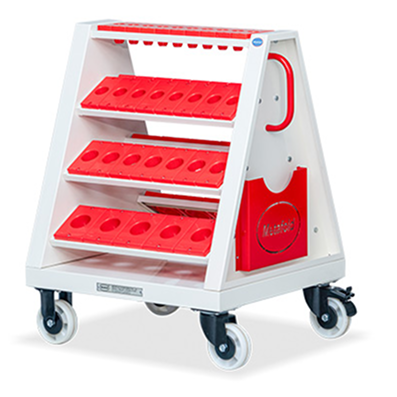

CNC A Type Trolley

  • Dimension (MM): 705 L x 620 W x 900 H
  • Load Capacity: 400 KG
  • Levels: 7 (3 On either side and 1 on top)
  • Handle: One Side
  • Wheel: Ø125, 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: RAL 9001 Handle Pocket RAL 3000
PART CODE HOLDER TYPE HOLDER/LEVEL TOTAL HOLDER
M01 TR04 01 BT - 30 10 70
M01 TR04 02 BT - 40 8 56
M01 TR04 03 BT - 50 5 35
M01 TR04 04 HSK - 50 8 56
M01 TR04 05 HSK - 63 7 49
M01 TR04 06 HSK - 100 5 35
M01 TR04 07 CAPTO - C6 8 56
M01 TR04 08 CAPTO - C8 5 35
M01 TR04 09 CAPTO - C10 5 35

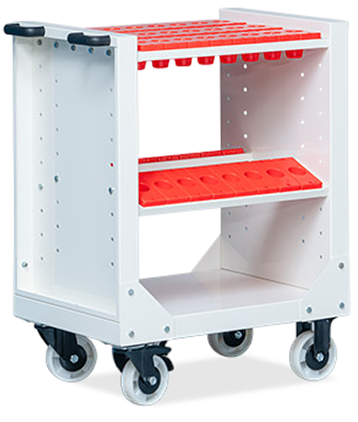

Sq. Type Trolley

  • Dimension (MM): 735 L x 490 W x 900 H
  • Load Capacity: 400 KG
  • Levels: 5 (1 No. either side and 3 Nos. on top)
  • Handle: One Side
  • Wheel: Ø125, 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: RAL 9001
PART CODE HOLDER TYPE HOLDER/LEVEL TOTAL HOLDER
M01 TR02 01 BT - 30 10 70
M01 TR02 02 BT - 40 8 40
M01 TR02 03 BT - 50 5 25
M01 TR02 04 HSK - 50 8 40
M01 TR02 05 HSK - 63 7 35
M01 TR02 06 HSK - 100 5 25
M01 TR02 07 CAPTO - C6 8 40
M01 TR02 08 CAPTO - C8 5 25
M01 TR02 09 CAPTO - C10 5 25

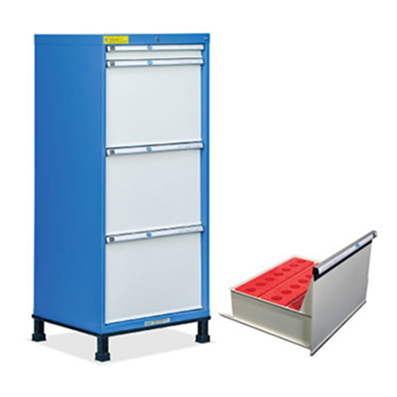

Cnc Tool Cabinet

  • Dimension (MM): 670 L x 600 W x 1450 H
  • Drawers:  F 425H - 3 Nos - (100% Open) 150 KG /drawer, 75 H - 1 (70% Open) 70 KG /drawer
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PART CODE HOLDER TYPE HOLDER/LEVEL TOTAL HOLDER
M01 CB01 01 BT - 30 30 90
M01 CB01 02 BT - 40 24 72
M01 CB01 03 BT - 50 15 45
M01 CB01 04 HSK - 50 24 72
M01 CB01 05 HSK - 63 21 63
M01 CB01 06 HSK - 100 15 45
M01 CB01 07 CAPTO - C6 24 72
M01 CB01 08 CAPTO - C8 15 45
M01 CB01 09 CAPTO - C10 15 45
