The bin trolley used to transform a traditional industrial tool trolley into a mobile vertical shelving, a warehouse on wheels so you can have all work equipment and materials readily on hand. The bin cart warehouse picking trolley by Metafold is the ideal solution for logistics and for storing medium- and small-size material such as smallwares, spare parts, electrical equipment, etc.

Features

  • Light weight and modular design in knockdown condition provides flexibility in relocation with ease.
  • The ideal solution for small parts storage.
  • Wide range of bin holder solutions.
  • Integration with ergo work swivel arms.
  • Transportation of various tools and bins.
  • A pushing handle facilities easy handling.
  • Ergonomically lower level of shelf is 450 mm.
  • The shelves are adjustable in increments of 35 mm pitch.
  • Glossy finish with scratch and impact-resistant powder coating.

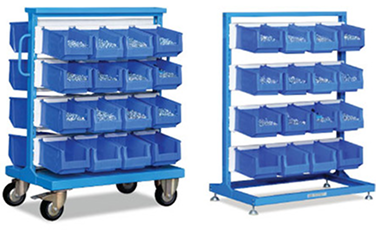

FPO Bin Trolley & Rack (Both Sides)

  • Loading Level: 400 KG
  • Wheel: Ø125, 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: Trolley RAL 5015 Shelf RAL 9001
MODEL TYPE PRODUCT
CODE TROLLEY		 PRODUCT
CODE RACK		 BIN
TYPE		 NO. OF
LEVEL		 BIN/
SHELF		 BIN
QTY. 		OVERALL
SIZE (L X W X H)
MM
Double Side M04 BT03 01 M04 BR03 01 15 12 7 84 1000 x 600 x 1300
M04 BT03 02 M04 BR03 02 25 10 6 60
M04 BT03 03 M04 BR03 03 35 8 4 32 1000 x 800 x 1300
M04 BT03 04 M04 BR03 04 45 8 4 32
Double Side M04 BT04 01 M04 BR04 01 15 4 7 28 1000 x 600 x 1300
25 2 6 12
35 2 4 8 1000 x 800 x 1300
35 2 4 8

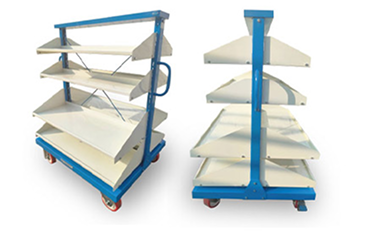

FPO Bin Trolley (Plain Shelf - Both Sides)

  • Loading Level: 400 KG
  • Wheel: Ø125, 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: Trolley RAL 5015 Shelf RAL 9001
MODEL TYPE PRODUCT
CODE TROLLEY		 PRODUCT
CODE RACK		 BIN
TYPE		 NO. OF
LEVEL		 BIN/
SHELF		 BIN
QTY. 		OVERALL
SIZE (L X W X H)
MM
Double Side M04 TS03 01 M04 BR03 01 25 10 7 84 1000 x 600 x 1300
M04 TS03 02 M04 BR03 02 35 8 6 60
M04 TS03 03 M04 BR03 03 45 8 4 32 1000 x 800 x 1300
Double Side Combo M04 BT04 01 M04 BR04 01 25 4 4 32
25 2 7 28
45 2 6 12

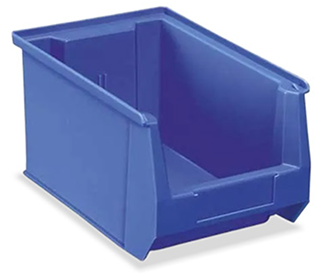

FPO Bin

  • Loading Level: 3
  • Wheel: 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: RAL 1003
PRODUCT CODE BIN TYPE LENGTH HEIGHT
M04 FP99 01 FPO 15 200 100
M04 FP99 02 FPO 25 230 125
M04 FP99 03 FPO 35 300 160
M04 FP99 05 FPO 45 350 200
