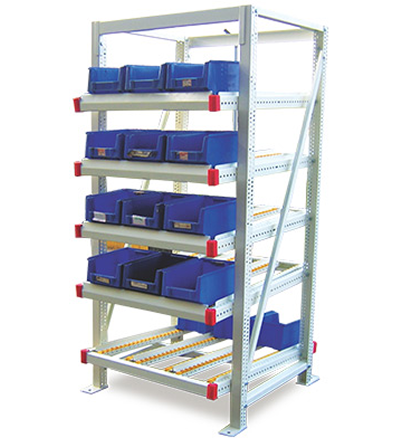

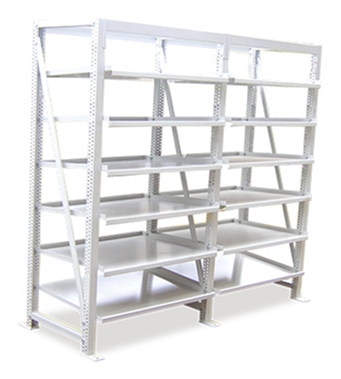

FIFO Storage Rack is designed for efficient inventory management. It ensures that items stored are retrieved in the order they were placed, allowing for optimal stock rotation and reducing the risk of obsolete stock. This system is ideal for businesses that require organized and time-sensitive access to inventory.

Features

  • Shelf adjustment is possible at only 10 mm pitch.
  • Individual shelf is adjustable on 4 bolts and nuts.
  • Extension of the shelf is indicated with red highlighter as per the safety norms.
  • Using tie members in racks enhances structural stability and load-bearing capacity, ensuring secure and efficient storage.
  • Glossy finish with scratch and impact-resistant powder coating.

FIFO Rack

CSR
TYPE BIN IN FRONT BIN IN DEPTH RACK
LENGTH		 RACK
DEPTH		 RACK 1800 HEIGHT - (3 FORWARD + 1 RETURN) LEVEL RACK 2000 HEIGHT - TYPE (4 FORWARD+ 1 RETURN) LEVEL
FIFO Rack with GI Shelf SIZE QTY SIZE QTY BIN / RACK MAIN MODULE ADD ON MODULE BIN / RACK MAIN MODULE ADD ON MODULE
200 3 300 2 800 600 24 W11 MM03 001 W11 AM03 001 30 W11 MM04 001 W11 AM04 001
200 4 300 2 1000 600 32 W11 MM03 002 W11 AM03 0012 40 W11 MM04 002 W11 AM04 002
200 5 300 2 1160 600 40 W11 MM03 003 W11 AM03 003 50 W11 MM04 003 W11 AM04 003
300 2 400 2 800 800 16 W11 MM03 004 W11 AM03 004 20 W11 MM04 004 W11 AM04 004
300 3 400 2 1090 800 24 W11 MM03 005 W11 AM03 005 30 W11 MM04 005 W11 AM04 005
300 4 400 2 1390 800 32 W11 MM03 006 W11 AM03 006 40 W11 MM04 006 W11 AM04 006
400 2 600 1 1000 600 8 W11 MM03 007 W11 AM03 007 10 W11 MM04 007 W11 AM04 007
400 3 600 1 1390 600 12 W11 MM03 008 W11 AM03 008 15 W11 MM04 008 W11 AM04 008

FIFO Rack

CSR
TYPE BIN IN FRONT BIN IN DEPTH RACK
LENGTH		 RACK
DEPTH		 RACK 1800 HEIGHT - (3 FORWARD + 1 RETURN) LEVEL RACK 2000 HEIGHT - TYPE (4 FORWARD+ 1 RETURN) LEVEL
FIFO Rack with GI Shelf SIZE QTY SIZE QTY BIN / RACK MAIN MODULE ADD ON MODULE BIN / RACK MAIN MODULE ADD ON MODULE
300 2 400 2 950 875 12 W11 MM01 001 W11 AM01 001 16 W11 MM02 001 W11 AM02 001
300 3 400 2 1250 875 18 W11 MM01 002 W11 AM01 0012 24 W11 MM02 002 W11 AM02 002
300 4 400 2 1580 875 24 W11 MM01 003 W11 AM01 003 32 W11 MM02 003 W11 AM02 003
400 2 300 3 1180 975 24 W11 MM01 004 W11 AM01 004 20 W11 MM02 004 W11 AM02 004
400 3 300 3 1580 975 27 W11 MM01 005 W11 AM01 005 36 W11 MM02 005 W11 AM02 005
400 2 600 2 1180 1275 12 W11 MM01 006 W11 AM01 006 16 W11 MM02 006 W11 AM02 006
400 3 600 2 1580 1275 18 W11 MM01 007 W11 AM01 007 24 W11 MM02 007 W11 AM02 007
