Auto-Store is an innovative enclosed shelf-based automated storage and retrieval system that effectively maximizes capacity within a small footprint. Based on the "goods-to-person" concept, the Auto-Store enhances productivity by directly delivering goods to the operator, eliminating the need for manual searching and retrieval. Our Indigenous Auto-Store solution features exceptional versatility, serving a broad spectrum of industries, from manufacturing facilities to warehouses, thanks to its modular and flexible design that easily adapts to your evolving business requirements.

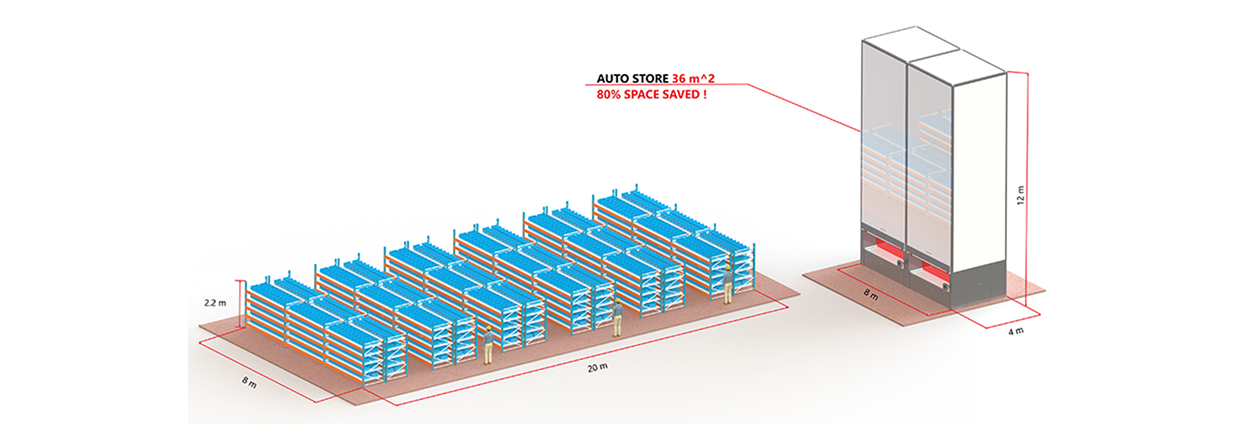

Footprint Comparison

Wherever there is a need for effective space utilization and speedy item retrieval, Auto-Store provides the optimal solution.

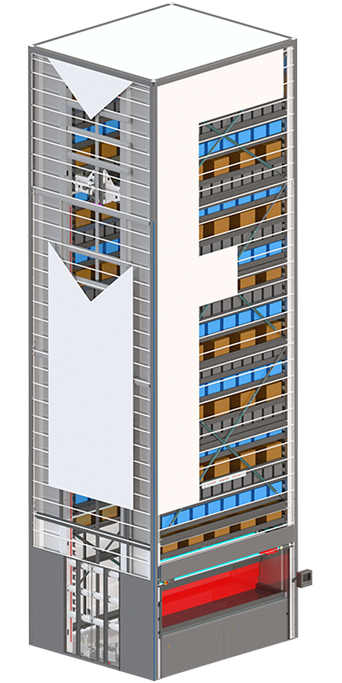

Technical Specification

Wherever there is a need for effective space utilization and speedy item retrieval, Auto-Store provides the optimal solution.

Tray Dimensions Length (MM)
Width (MM)		 Up to 3650
650, 850, 1000
Load Capacity Per Shelf (KG) Up to 1000
Tray Adjustment Pitch (MM) 50
Tray Pitch (MM) 150*
System Height (MM) 15,000*

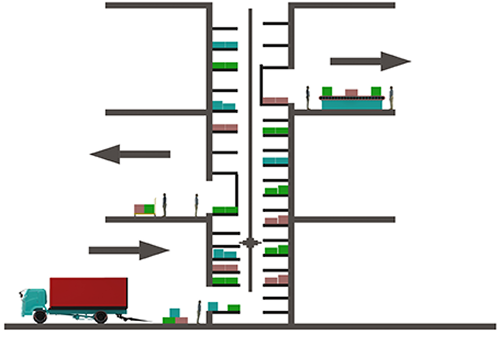

Multi Floor Access

  • Access points at different floor levels, front and back
  • Reduce man and material movement time between different floors
  • Eliminate Goods Lift
  • Store material vertically from basement up to top floor
  • Avoid multiple V Store location

Advantages

Since our first machine in 2008, we've evolved to our fifth generation. With around 20 distinctive features that distinguish us from existing designs in the market, we offer enhanced functionality, proactive monitoring, and customizable operational preferences, giving our customers a competitive advantage.

  • Efficient

    • Quick storage and retrieval
    • Up to 80% faster retrieval time than normal shelving
    • Intelligent height and weight sensing and flexible tray height for optimum usage of vertical space
    • Option of reinforced toothed belt drive for quiet operation or high duty chain drive

  • Secure

    • Store safely and securely
    • Password protected with data logging
    • Smooth movement of trays for storing fragile products
    • Automatic shutter doors for all access openings with safety interlock
    • Tray wise User Access Control to prevent unauthorized access
    • Avoid multiple V Store location

  • Options

    • Standard single access, Optional Multiple Access up to three per machine
    • Optional customized dividers and partitions available for trays
    • Dual tray exchange option to reduce retrievaltime

  • Save

    • Lower floor space up to 80% smaller footprint
    • Reduces material handling and storage racks
    • Minimum maintenance
    • Reduce personnel costs by reducing picking time

  • Safe

    • Reduced risk of falling loads
    • Light barrier for safe hand operation
    • Over load detection system
    • Automatic height sensing
    • IP66 Certified operator touch panel

  • Ergonomic

    • Adjustable tray positioning in access opening for ergonomic loading and unloading
    • Swivel mounted operator panel

  • Modular

    • Modular construction allows future height increase for expandable storage
