Sturdy and roomy, Perfo metal cabinets are ideally suited to any work environment and, thanks to the possibility of joining multiple modules together, can be used to create actual furniture elements for workshops, warehouses and laboratories. The Perfo cabinet with hinged doors comes with a solid sheet metal structure and can be configured - when placing the order or even after - in various versions, depending on its intended use and on specific requirements.

Features

  • Drawers & shelves.
  • Everything within reach (accessories for storing smallwares).
  • The inside of the metal doors can bee quipped with perforated panels, all doors mount a key-operated lock.
  • Can be used for shipping the cabinet without using wooden pallets.
  • Glossy finish with scratch and impact-resistant powder coating.

Perfo - Hinge Door Cabinet

  • Dimension (MM): Dimension (MM)
  • Drawer Height: 100 mm H
  • Drawer Opening: 100%
  • Drawer inner Size (MM): 875 L x 460 D x 75 H
  • Ground Clearance: 1800
  • Load Capacity: Drawer - 100 kg, Shelf - 40 kg and Perfo panel - 40 KG
  • Shelf Adjustment: At every 25 MM
  • Powder Coating: Cabinet RAL 5015 and Shelf, Drawer, Door RAL 9001

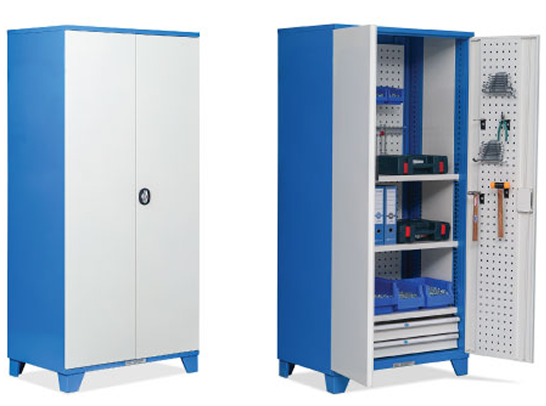

Perfo Door

CSR

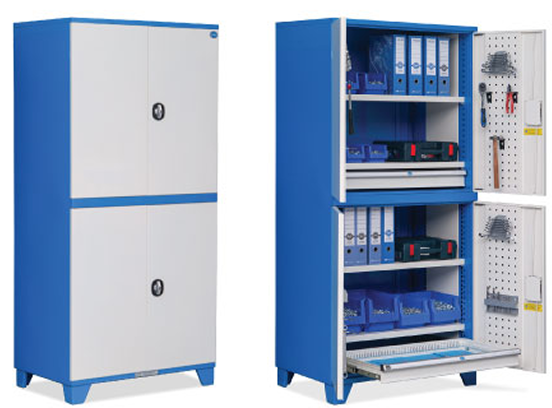

Double Plain and Perfo Door

CSR
PRODUCT CODE NO. OF SHELF NO. OF DRAWER NO. OF PERFO PANEL
M02 DD01 01 4 2 3 (2 on door + 1 full length on back)
M02 DD01 02 2 3 3 (2 on door +1 half length on back)
PRODUCT CODE NO. OF SHELF NO. OF DRAWER NO. OF PERFO PANEL
M02 DD02 01 4 1 (Top & Bottom) -
M02 DD01 01 4 1 (Top & Bottom) 4 (on door)

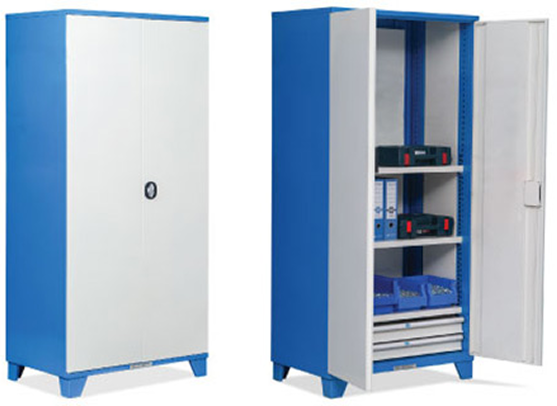

Plain Door

CSR

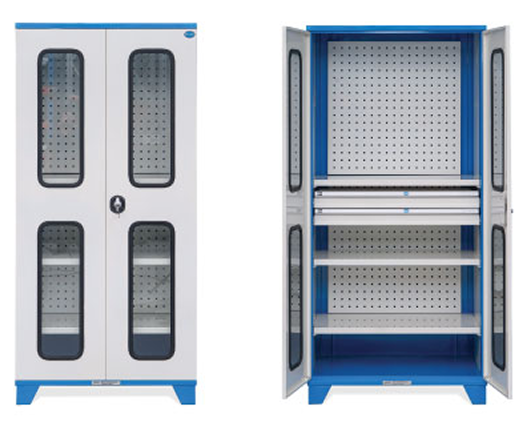

Glass Door

CSR
PRODUCT CODE NO. OF SHELF NO. OF DRAWER NO. OF PERFO PANEL
M02 DD07 01 4 2 -
PRODUCT CODE NO. OF SHELF NO. OF DRAWER NO. OF PERFO PANEL
M02 DD05 01 4 2 1 full length on back
M02 DD06 01 2 3 1 full length on back

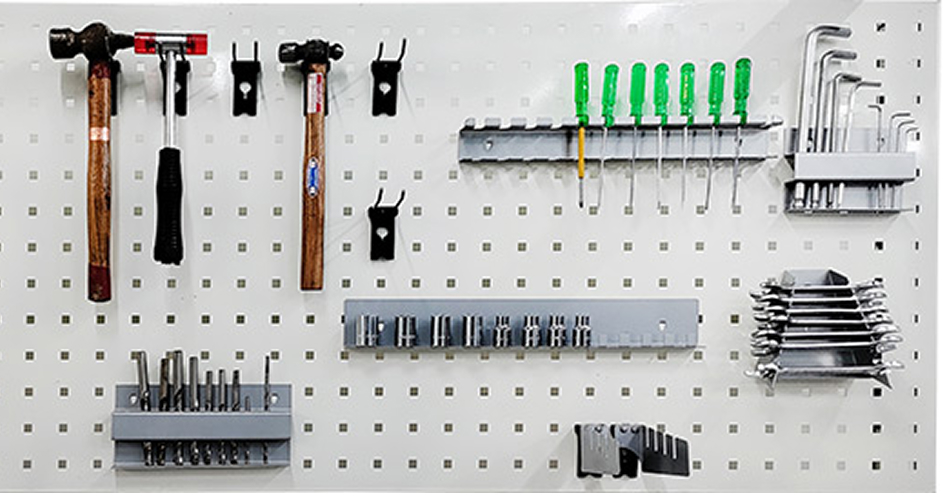

Perfo Accessories - Set of 60 Pieces

CSR
Product Code : MEPL05150210011
Single Hook L 20 MM 10 Nos
Single Hook L 40 MM 10 Nos
Single Hook L 85 MM 10 Nos
Double Hook L 40 MM 8 Nos
Double Hook L 60 MM 8 Nos
Double Hook L 75 MM 5 Nos
Double Hook L 100 MM 5 Nos
Spanner Holder 1 Nos
Screw Driver Holder 1 Nos
Allen Key Holder 1 Nos
Saw Holder 1 Nos
