File storage optimizers are designed to make the most efficient use of available space. They typically include features like adjustable shelving, dividers, and compact design to store a large volume of files or documents in a relatively small footprint.

Features

  • Very cost effective solution.
  • Configured to suit any type of storage.
  • The shelves are adjustable.
  • Modular design in knockdown condition provides.
  • Flexibility in relocation with ease with lock & key.
  • Glossy finish with scratch and impact-resistant powder coating.

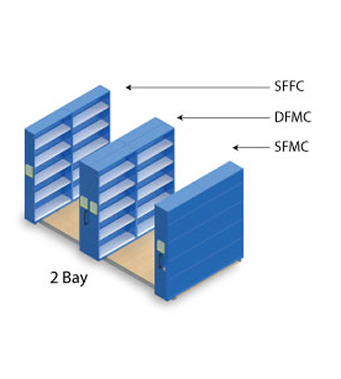

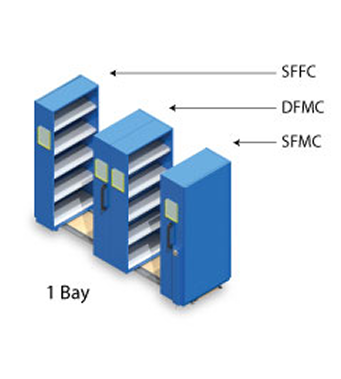

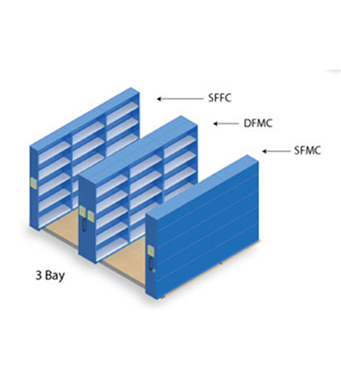

Mobile Storage Solution (Push Pull Type)

CSR
CSR
CSR

Push Pull 1980 (MM) H

  • Height (MM): 1980
  • No of Compartment: 5
  • Load Per Shelf: 60 KG UDL
Shelf Size (L x W) 915 x 290 SFFC 915 x 290 DFMC 915 x 410 SFMC
BAY TYPE OUTER SIZE (mm) PRODUCT CODE OUTER SIZE (mm) PRODUCT CODE OUTER SIZE (mm) PRODUCT CODE
1 BAY 330x915 W10 PP01 005 198 660 x 915 W10 PP04 005 198 450 x 915 W10 PP07 005 198
2 BAY 330x1830 W10 PP02 005 198 660 x 1830 W10 PP05 005 198 450 x 1830 W10 PP08 005 198
3 BAY 330x2745 W10 PP01 005 198 660 x 2745 W10 PP06 005 198 450 x 2745 W10 PP09 005 198

Push Pull 2380 (MM) H

  • Height (MM): 2380
  • No of Compartment: 5
  • Load Per Shelf: 60 KG UDL
Shelf Size (L x W) 915 x 290 SFFC 915 x 290 DFMC 915 x 410 SFMC
BAY TYPE OUTER SIZE (mm) PRODUCT CODE OUTER SIZE (mm) PRODUCT CODE OUTER SIZE (mm) PRODUCT CODE
1 BAY 330x915 W10 PP01 006 238 660 x 915 W10 PP04 006 238 450 x 915 W10 PP07 006 238
2 BAY 330x1830 W10 PP02 006 238 660 x 1830 W10 PP05 006 238 450 x 1830 W10 PP08 006 238
3 BAY 330x2745 W10 PP01 006 238 660 x 2745 W10 PP06 006 238 450 x 2745 W10 PP09 006 238
