Tool Cabinet is a safe, secure and effective solution to cater the needs of storing and sorting of vast array of tools and components used in day-to-day work. Having an organized way to store prevents tools from getting misplaced thus promoting the serenity of workplace and improving the productivity.

Features

  • Central locking system.
  • Aesthetically appealing.
  • Label holder on each drawer.
  • Fully accessible drawers.
  • Low friction telescopic ball bearing slides.
  • Provision of partitions as per convenience.
  • Flexibility through a combination of drawers.
  • Stand for keeping ground clearance.
  • Glossy finish with scratch and impact-resistant powder coating.

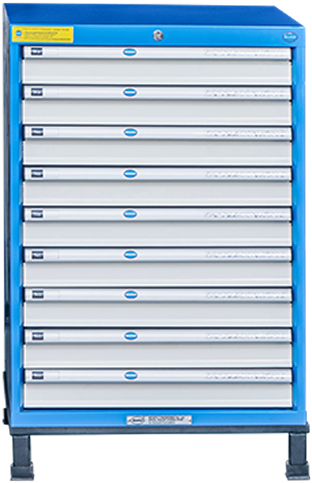

Light Duty (40 Series) II - 560 x 600

  • Drawer Opening : 100%
  • Drawer Capacity : 40 KG Each Drawer
  • Drawer Inner Size (MM) : 460 L x 490 D
  • Powder Coating : Cabinet RAL 5015 Drawer RAL 9001
MODEL / SIZE
(L X W)		 PRODUCT
CODE		 HEIGHT
(MM)		 DRAWER
HEIGHT / QTY
75 100 125 150
MEPL II(560 X 600) M09 TL10 01 800 7
M09 TL10 03 800 2 3 2
M09 TL10 08 800 3 2 1 1
M09 TL10 01 1000 6 2 2
M09 TL10 02 1000 9
M09 TL10 03 1000 6

Medium Duty (100 Series) II - 560 x 600

  • Drawer Opening : 100%
  • Drawer Capacity : 100 KG Each Drawer
  • Drawer Inner Size (MM) : 460 L x 490 D
  • Powder Coating : Cabinet RAL 5015 Drawer RAL 9001
MODEL / SIZE
(L X W)		 PRODUCT
CODE		 HEIGHT
(MM)		 DRAWER HEIGHT / QTY
75 100 125 150 200
MEPL II(560 X 600) M09 TL10 01 800 7
M09 TL10 03 800 2 3 2
M09 TL10 02 1000 9
M09 TL10 03 1000 6
M09 TL10 04 1000 6 2 2

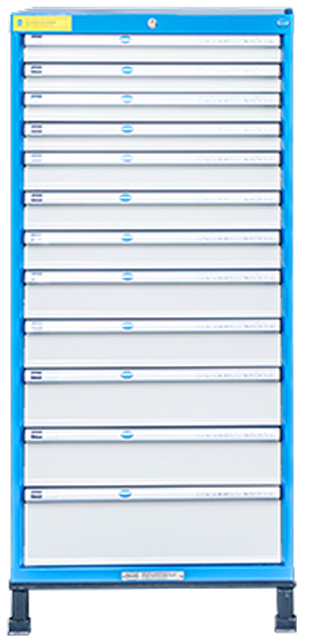

Heavy Duty (70.150 Series) V - 720 x 720

  • Drawer Opening : Standard Pull Out-75% Full Pull-out 100%
  • Drawer Capacity : Standard Pull Out-75 KG UDL each
    Drawer Full Pull-out -150 KG UDL each Drawer
  • Drawer Inner Size (MM) : 610 L x 610 D
  • Powder Coating : Cabinet RAL 5015 Drawer RAL 9001
MODEL / SIZE
(L X W)		 PRODUCT
CODE		 HEIGHT
(MM)		 DRAWER HEIGHT / QTY
75 100 125 150 200
MEPL V (720 X 720) M09 TH08 04 800 S3 S2 S1 S1
M09 TH08 08 800 F7
M09 TH09 03 1000 F6
M09 TH09 07 1000 S2 S3 F3
M09 TH08 09 1000 F9
M09 TH10 01 1450 S4 S3 S2 F2 F1
M09 TH10 08 1450 F9
M09 TH11 01 1625 S3 S5 F4 F1
M09 TH11 03 1625 S3 S6 S2 F3

Partitions

  • Finish : Powder Coating RAL 9001
  • Material : MS

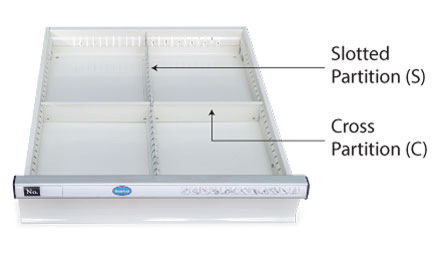

  • Slotted Partitions (S) are Fixing Front to Back of the Drawers & Cross Partitions (C) are sub-dividing

1s + 2c partitions - for 40, 100, 70.150 series cabinet

Drawer height II
560 L x 600 D		 V
720 L x 720 D		 VII
1125 L x 600 D
75 M09 PT02 01 M09 PT03 01 M09 PT04 01
100/125 M09 PT02 02 M09 PT03 02 M09 PT04 02
150/175 M09 PT02 03 M09 PT03 03 M09 PT04 03
200/250 M09 PT02 04 M09 PT03 04 M09 PT04 04

2s + 6c partitions - for 40, 100, 70.150 series cabinet

Drawer height II
560 L x 600 D		 V
720 L x 720 D		 VII
1125 L x 600 D
75 M09 PT02 05 M09 PT03 05 M09 PT04 05
100/125 M09 PT02 06 M09 PT03 06 M09 PT04 06
150/175 M09 PT02 07 M09 PT07 07 M09 PT04 07
200/250 M09 PT02 08 M09 PT03 08 M09 PT04 08

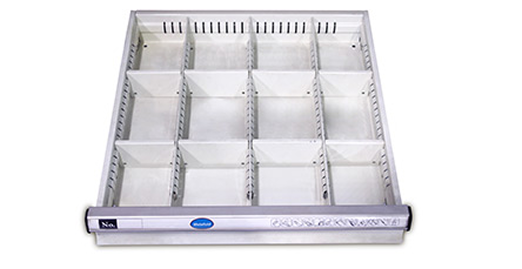

3s + 8c partitions - for 40, 100, 70.150 series cabinet

Drawer height II
560 L x 600 D		 V
720 L x 720 D		 VII
1125 L x 600 D
75 M09 PT02 09 M09 PT03 09 M09 PT04 09
100/125 M09 PT02 10 M09 PT03 10 M09 PT04 10
150/175 M09 PT02 11 M09 PT11 11 M09 PT04 11
200/250 M09 PT02 12 M09 PT03 12 M09 PT04 12

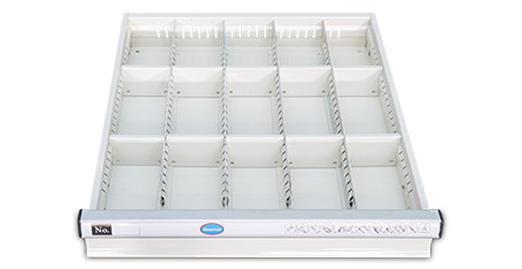

4s + 10c partitions - for 40, 100, 70.150 series cabinet

Drawer height II
560 L x 600 D		 V
720 L x 720 D		 VII
1125 L x 600 D
75 M09 PT02 13 M09 PT03 13 M09 PT04 10
100/125 M09 PT02 14 M09 PT03 14 M09 PT04 11
150/175 M09 PT02 15 M09 PT11 15 M09 PT04 12
200/250 M09 PT02 16 M09 PT03 16 M09 PT04 13

Features Photo

CSR

Heavy duty slider - FPO light

CSR

Light and medium duty slider highlighted products

CSR

Central locking system

CSR

Slots in the drawer to adjust the partition

CSR

Labelling strip on all drawers
