Features

  • Light weight and modular design in knockdown condition provides flexibility in relocation with ease.
  • Ergonomically design.
  • Wide range of accessories to suit your requirement.
  • Smooth work surface.
  • Maintenance free.
  • Easy to assemble.
  • Glossy finish with scratch and impact-resistant powder coating.
  • Vibration resistance.

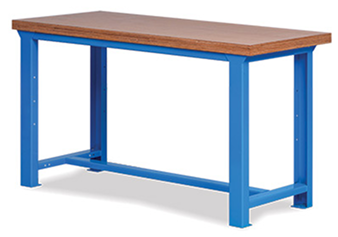

Basic

  • Features: Working Height is 850 MM Table Top is 48 mm thick Beach Wood
  • Load Capacity: 1000 KG
  • Powder Coating: RAL 5015
PRODUCT CODE DIMENSIONS (L X D) MM
M11 BW01 01 1500 x 700
M11 BW01 02 1800 x 700
M11 BW01 03 2000 x 700

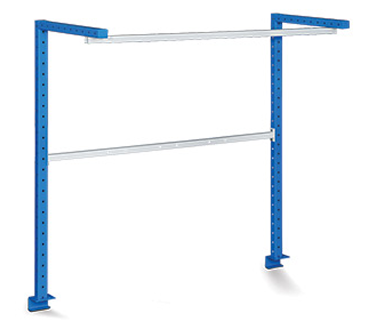

Upper Frame (L -Type)

  • Features: Upper Frame Assembly is attached to the Basic Work Bench this is used for Top Accessories Attachment Frame (L - type) height is 1300 MM from Top Surface
  • Powder Coating:  RAL 5015
PRODUCT CODE LENGTH (MM)
M11 AC01 01 1500
M11 AC01 02 1800
M11 AC01 03 2000

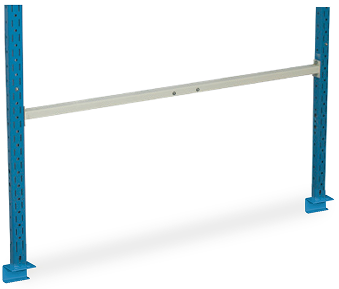

Upper Frame-Straight Type

  • Features: Upper Frame Assembly is attached to the Basic Work Bench this is used for Top Accessories Attachment. Frame (Straight type) height is 750 mm from Top Surface
  • Powder Coating:  RAL 5015
PRODUCT CODE LENGTH (MM)
M11 AC02 01 1500
M11 AC02 02 1800
M11 AC02 03 2000

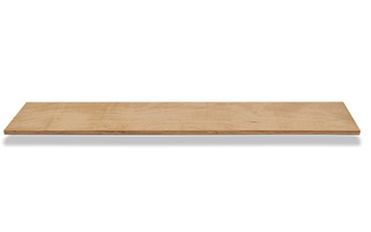

Footrest

  • Features: Foot Rest 300 mm width is fixed to bottom side of Work Bench
PRODUCT CODE LENGTH (MM)
M11 CA10 01 1500
M11 CA10 02 1800
M11 CA10 03 2000

Table top Surface

  • Features: Loose Rubber Sheet put on Top of the Table Top
  • Powder Coating: MS Powder Coated Sheet with Front Side Folded and 3 Side Open
PART CODE LENGTH (MM) TYPE OF SURFACE
M11 AC04 01 1500 Rubber Sheet 6mm
Thick (Black Colour)
M11 AC04 02 1800
M11 AC04 03 2000
M11 AC04 01 1500 MS Sheet 2MM
Thick (Powder Coated)
M11 AC04 02 1800
M11 AC04 03 2000

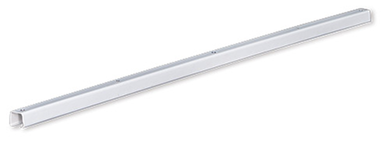

Trolley with Rail

  • Features:For Hanging Air Gun, Soldering m/c with max Capacity 5 KG
  • Powder Coating: RAL 9001
PRODUCT CODE LENGTH (MM)
M08 AC17 05 1500
M08 AC17 06 1800
M08 AC17 07 2000

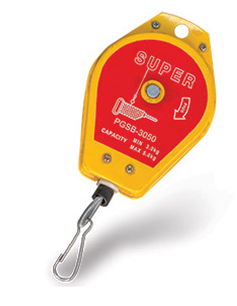

Spring Balancer

  • Features:Used for Hanging Tools
PART CODE LENGTH (MM)
M08 AC20 07 3
M08 AC20 08 5

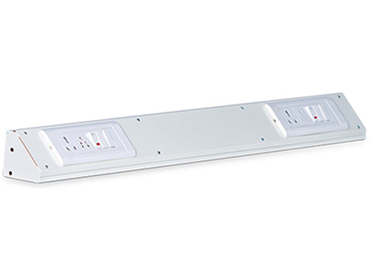

Electrical Box Unit

  • Features: In One Standard Switch Box Plate consists of For Switch and Socket - 5A, 15A (01 No each) For Tube Light - 5A Switch (01 No) For Dummy Location - End Cap (01 No)
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM) NO. OF BOX FILE
M08 AC03 10 1500 Both side
M08 AC03 08 1800 Both side
M08 AC03 13 2000 Both side

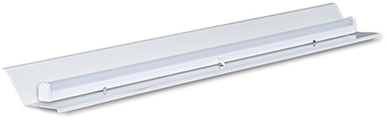

Tubelight with Cover (LED)

  • Features: Provides an optimal lighting level of 300 lux on the top surface
PART CODE LENGTH (MM)
M08 AC25 11 (600 MM) 2 FT
M08 AC25 15 (1200 MM) 4 FT

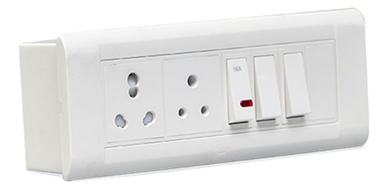

Surface Box Unit

  • Features: Features : In One Standard Surface Box Plate consists of For Switch and Socket - 5A, 15A (01 No each) For Tube Light - 5A Switch (01 No) For Dummy Location - End Cap (01 No).
  • Powder Coating: RAL 9001
PART CODE LENGTH (MM)
M11 AC15 01 Surface Box with Modular Plate 8

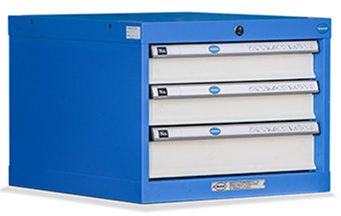

Tool Cabinet Light Duty

  • Drawer Opening: 100%
  • Drawer Capacity (KG): 40 kg Each Drawer
  • Drawer Inner Size (MM): 460 L x 490 D
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PRODUCT CODE MODEL NO. / SIZE (L X W) HEIGHT (MM) DRAWER HEIGHT / QTY.
M09 TL08 01 II (560 x 600) 425 100 125 150
2 1 -

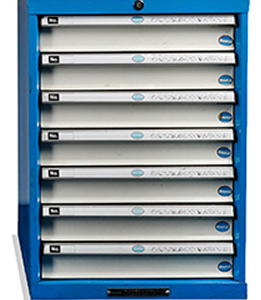

Tool Cabinet Medium Duty

  • Drawer Opening: 100%
  • Drawer Capacity (KG): 100 kg Each Drawer
  • Drawer Inner Size (MM): 460 L x 490 D
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PRODUCT CODE MODEL NO. / SIZE (L X W) HEIGHT (MM) DRAWER HEIGHT / QTY.
M09 TM03 01 II (560 x 600) 800 100 125 150
7 - -

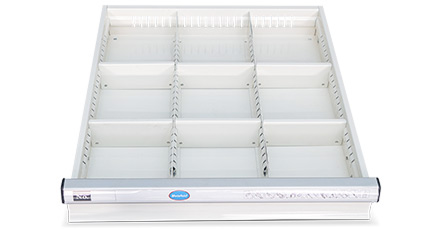

Drawer Partition - 2 Slotted & 6 Cross

  • MEPL M09 TM03 01
DRAWER HEIGHT II 560 L x 600 D
100/125 M09 PT02 06

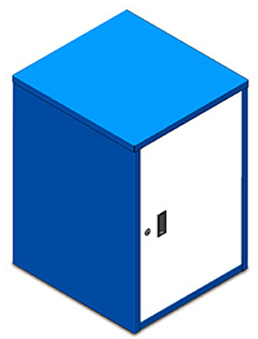

Cabinet with Door

  • Dimension: 560 L x 600 D (MM)
  • FeaturesHaving 01 Middle Shelf of 50 KG UDL and Door with Lock and Key
  • Powder Coating: Cabinet RAL 5015 Door RAL 9001
PRODUCT CODE PART DESCRIPTION
M11 CA12 02 Cabinet 800H with Door (RH Side Open)

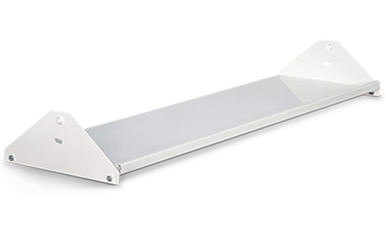

Tilting Shelf

  • Features: To keep the FPO Bin, Boxes and Depth is 325 MM
  • Board Type: Max 100 KG UDL
  • Powder Coating: AL 9001
PRODUCT CODE LENGTH (MM)
M08 AC12 06 1500
M08 AC12 07 1800
M08 AC12 08 2000

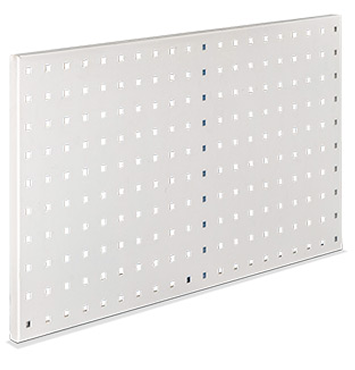

Perfo Panel Full Length

  • Features: To keep tools and height is 610 MM
  • Powder Coating: RAL 9001
PRODUCT CODE LENGTH (MM)
M08 AC05 09 1500
M08 AC05 10 1800
M08 AC05 09 2000

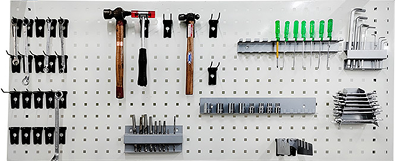

Perfo Accessories Sets of 36 Pieces

  • Features: To keep tools and height is 610 MM
  • Load Capacity: Max 25 KG UDL
  • Powder Coating: RAL 9001
PRODUCT CODE: MEPL M05 PP03 08
Single Hook L 20 MM 05 Nos Spanner Holder 1 Nos
Single Hook L 40 MM 10 Nos Screw Driver Holder 1 Nos
Single Hook L 85 MM 10 Nos Allen Key Holder 1 Nos
Single Hook L 40 MM 05 Nos Saw Holder 1 Nos
Drill Bit Holder 2 Nos

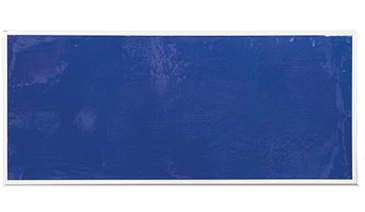

Soft Board Full Length

  • Features: To pin instructions, reports and height is 610 mm
  • Powder Coating: RAL 9001
PRODUCT CODE LENGTH (MM)
M08 AC07 09 1500
M08 AC07 10 1800
M08 AC07 11 2000

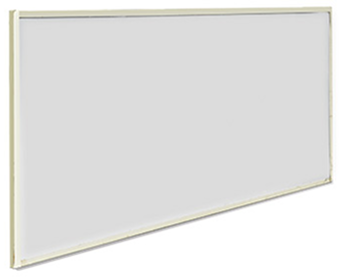

White Board Full lLength

  • Features: To write the instructions and height is 610 MM
  • Board Type: Non - Magnetic
  • Powder Coating: RAL 9001
PRODUCT CODE LENGTH (MM)
M08 AC09 09 1500
M08 AC09 10 1800
M08 AC09 11 2000

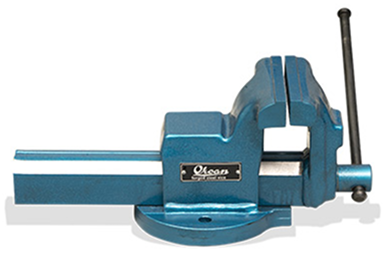

Bench Vice

  • Features: To write the instructions and height is 610 MM
  • Board Type: Non - Magnetic
  • Powder Coating: RAL 9001
PRODUCT CODE PART DESCRIPTION
M11 AC18 02 Bench Vice - 4’
M11 AC18 02 Bench Vice - 6’

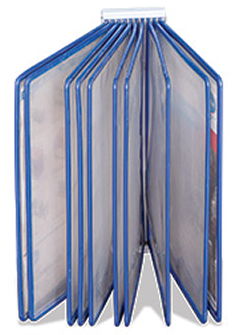

Document Folder

  • Features: To display the drawings and assembly instruction
PRODUCT CODE SET OF PAGES FOLDER TYPE
M08 AC20 01 05 A4
M08 AC20 02 10
M08 AC20 03 05 A3
M08 AC20 04 10

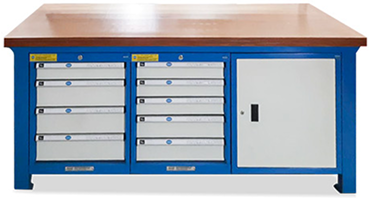

Work Bench with Tool Cabinet & Cabinet Door

  • Working Height (MM): 850
  • Load Capacity: 1000 KG
  • Table Top (MM): 48 Thick Beach Wood
  • Too Cabinet Size (MM): 560 L x 600 D x 650 H
  • Drawer Size (MM): F100 - 1, F150 - 3 on LH Side F100 - 3, F125 - 2 on Middle
  • Drawer Inner Size (MM): 460 L x 490 D
  • Drawer Opening: 100%
  • Drawer Capacity: 40 KG Each Drawer
  • Door Cabinet Size: 610 L x 600 D x 650 H (MM) on RH Side
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PRODUCT CODE DIMENSIONS (L X W X H) MM
M11 BW04 01 2000 x 700 x 848T

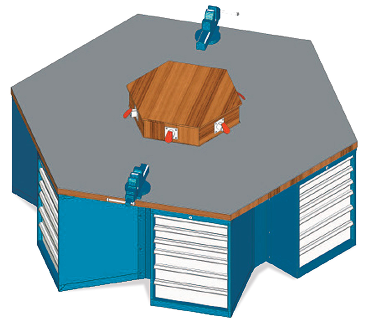

Work Bench Hexagonal

  • Working Height (MM): 850
  • Load Capacity: 1000 KG
  • Table Top (MM): 48 Thick Beach Wood
  • Too Cabinet Size (MM): 560 L x 600 D x 800 H
  • Too Cabinet Qty: 6 Nos
  • Drawer Size (MM): F100 - 3, F125 - 2, F150 - 1
  • Drawer Inner Size (MM): 460 L x 490 D
  • Drawer Opening: 100%
  • Drawer Capacity: 40 KG Each Drawer
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001

Bench Vise 4”/6” - Optional Accessory (Excluded)

MODEL TYPE PRODUCT CODE DIMENSIONS (L X W X H) MM
Workbench with Plain Top M11 MD09 01 2400 x 2100 x 848
Workbench with Top Electric Socket M11 MD09 02 2400 x 2100 x 848

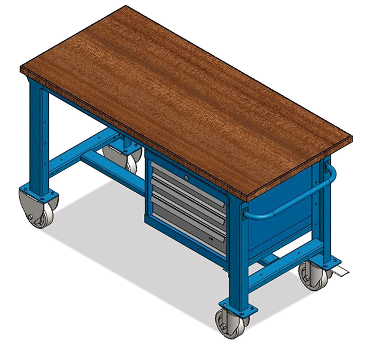

Work Bench Trolley

  • Working Height (MM): 900
  • Load Capacity: 400 KG
  • Table Top (MM): 48 Thick Beach Wood
  • Too Cabinet Size (MM): 560 L x 600 D x 425 H
  • Drawer Size (MM): F100 - 3, F125 - 2, F150 - 1
  • Drawer Inner Size (MM): 460 L x 490 D
  • Drawer Opening: 100%
  • Drawer Capacity: 40 KG Each Drawer
  • Wheel: Ø 125, 2 Fix + 1 Swivel + 1 Swivel with Brake
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PRODUCT CODE DIMENSIONS (L X W X H) MM
M11 WT01 01 1500 x 700 x 900
M11 WT01 02 1800 x 700 x 900

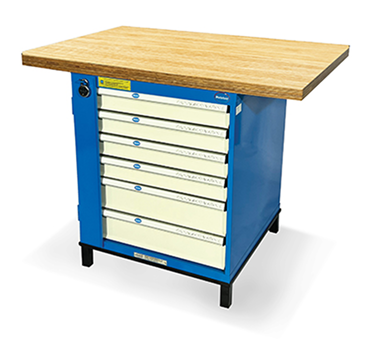

Work Bench with Tool Cabinet Pad Lock

  • Working Height (MM): 850
  • Load Capacity: 1000 KG
  • Table Top (MM): 48 Thick Beach Wood
  • Too Cabinet Size (MM): 720 L x 720 D x 800 H
  • Drawer Size (MM): F100 - 4, F150 - 2
  • Drawer Inner Size (MM): 610 L x 610 D
  • Drawer Opening: 100%
  • Drawer Capacity: 150 KG Each Drawer
  • Lock: Pad Lock with Flap and Lock
  • Powder Coating: Cabinet RAL 5015 Drawer RAL 9001
PRODUCT CODE DIMENSIONS (L X W X H) MM
M11 BW05 01 1200 x 850 x 848
