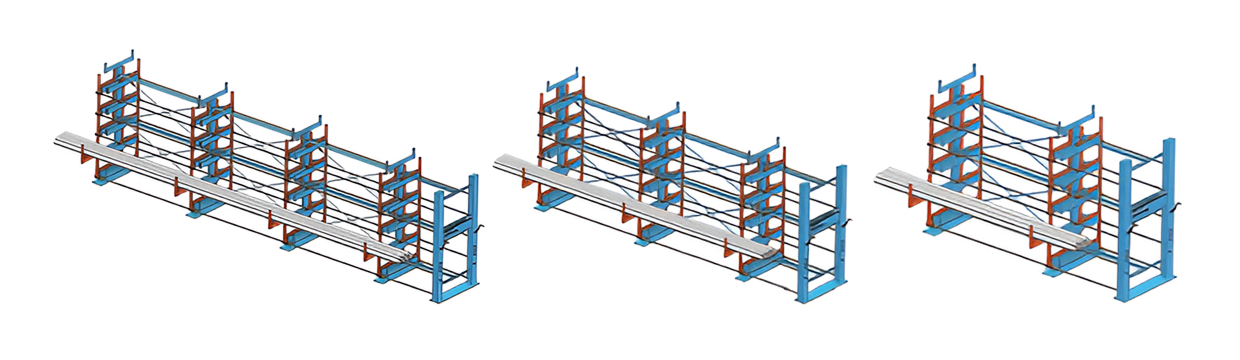

This rack is designed for storage of lengthy goods like bars, tubes, pipes, channels, flats, I-Beam, profile, rods and sections. This system is a compact, extractable / retractable type, organised vertical storage solution. For each level a cranking mechanism is provided for easy access of material to operator. This system provides a efficient storage solution of material which can be easily controlled by single operator thus increasing your profitability

For storage of solid material such as - bars, rods, channels, flats, I-beam, billets

PRODUCT CODE Bar Length
in meters		 Number
of Upright		 Upright C/C
in meters		 Usable
Arm space		 Movable Level’s
on both side		 LBC / Level
(Tons)		 LBC Top Shelf
(Tons)		 Total Load
Capacity
MEPL R02 BA01 351 3 2 2 550 x 300 5 3 2 32
MEPL R02 BA01 351 3 3 1 550 x 300 5 4.5 2 47
MEPL R02 BA01 351 4 2 2 550 x 300 5 3 2 32
MEPL R02 BA01 351 4 3 1 550 x 300 5 3 2 47
MEPL R02 BA01 351 6 2 3 550 x 300 4 3 2 26
MEPL R02 BA01 351 6 2 3 550 x 300 5 3 2 32
MEPL R02 BA01 351 6 3 1.5 550 x 300 4 4.5 2 38
MEPL R02 BA01 351 6 3 1.5 550 x 300 5 4.5 2 47
MEPL R02 BA01 351 8 4 2 550 x 300 5 4.5 2 47
MEPL R02 BA01 351 10 5 2 550 x 300 5 4.5 2 47
MEPL R02 BA01 351 12 6 2 550 x 300 5 4.5 2 47

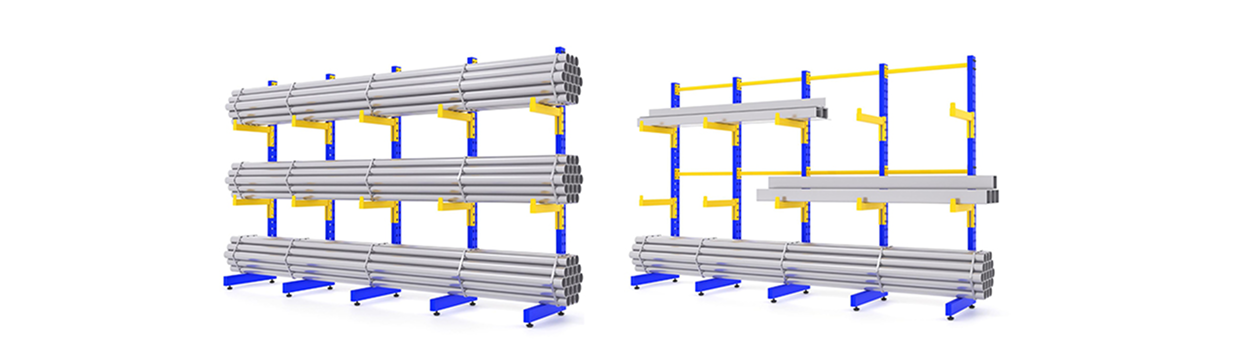

For storage of solid material such as - pipe, tubes & sections

PRODUCT CODE Pipe Length
in meters		 Number
of Upright		 Upright C/C
in meters		 Usable
Arm space		 Movable Level’s
on both side		 LBC / Level
(Tons)		 LBC Top Shelf
(Tons)		 Total Load
Capacity
MEPL R03 BA01 441 3 2 2 850 x 450 5 3 2 32
MEPL R03 BA01 441 3 3 1 850 x 450 5 4.5 2 47
MEPL R03 BA01 441 4 2 2 850 x 450 5 3 2 32
MEPL R03 BA01 441 4 3 1 850 x 450 5 3 2 47
MEPL R03 BA01 441 6 2 3 850 x 450 4 3 2 26
MEPL R03 BA01 441 6 2 3 850 x 450 5 3 2 32
  • Storage options available for STANDARD 3 meters to 12 meters can be provided.
  • Storage for special sizes above 12 meters + can be customised as per user requirement.

Advantages

  • Maximum storage in minimum area saving floor space.

  • Saves operators time in finding the material.

  • 12 month’s warranty period.

  • Improves operational efficiency.

  • AMC free machine.

Integrate your SAP / ERP with our WMS

A step closer to industry 4.0

System driven approach

Seamless integration

Customizable as per requirement

Advantages

Services

From mechanical design to control panel assembly to software development, our entire system is developed and executed in-house, driven by a single goal: to provide prompt service whenever our customers require it, minimizing any potential downtime. Customer satisfaction serves as the cornerstone of our service team's performance, ensuring that we consistently deliver exceptional support and assistance to our valued customers.
